Graphite nozzles and monoblock stoppers for locking system of casting buckets
Graphite nozzles and graphite monoblock stoppers is one of the elements of the locking mechanisms of casting ladles. SEEIF has extensive experience in the production of various ceramic and graphite products used in the foundry industry. You can get expert advice regarding the use of SEEIF products and their technical parameters from Kitmas specialists.

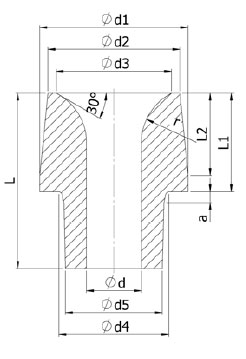

Graphite nozzles
|
Type |
d1 (mm) |
d2 (mm) |
d3 (mm) |
d4 (mm) |
d5 (mm) |
d (mm) |
L (mm) |
L1 (mm) |
L2 (mm) |
a (mm) |
r (mm) |
|
0A |
135 |
120 |
105 |
100 |
90 |
10, 15, 20, 25, 30, 35, 40, 45, 50, 60 |
160 |
96 |
75 |
10 |
50 |
|
1A |
155 |
139 |
115 |
110 |
100 |
10, 15, 20, 25, 30, 35, 40, 45, 50, 60, 70 |
210 |
100 |
80 |
10 |
50 |
|
1A80 |
153 |
139 |
115 |
115 |
110 |
80 |
210 |
100 |
80 |
10 |
50 |
|
2A |
155 |
133 |
115 |
110 |
100 |
20, 25, 30, 35, 40, 45, 50, 55, 60, 70 |
240 |
130 |
110 |
10 |
50 |
|
3A |
180 |
153 |
135 |
140 |
120 |
20, 25, 30, 35, 40, 45, 50, 60, 70, 80 |
285 |
163 |
135 |
20 |
50 |
|
Type |
d1 (mm) |
d2 (mm) |
d3 (mm) |
d (mm) |
L (mm) |
r (mm) |
|
6A |
133 |
115 |
99 |
20,22,25,30,35,40,45,50,60,70 |
170 |
50 |
|
6A80 |
133 |
115 |
110 |
80 |
170 |
45 |
|
7A |
139 |
115 |
99 |
17,18,20,25,30,35,40,50,55,60,65,70 |
200 |
50 |
graphite monoblock stoppers
|
L (mm) |
L1 (mm) |
L2 (mm) |
L3 (mm) |
L4 (mm) |
D (mm) |
d (mm) |
d1 (mm) |
d2 (mm) |
r1 (mm) |
r2 (mm) |
α |
|
400 - 650 |
40 - 130 |
50 - 250 |
60 - 105 |
15 - 25 |
90,105,120 |
42, 53 |
13 - 18 |
22 - 40 |
45, 60 |
15, 25, 35, 45 |
60°, 90° |
