Pocket blocks SEEIF
Pocket blocks is an element of the locking device installed in the lining of the bottom of the casting ladle above the hole in the casing for placement of a steel pouring cup in it. The pocket blocks consists of one or two parts and holds the steel pouring glass in the set position, for which a hole is made in it. The upper part of the hole is expanded and forms a nest. When raising the stopper, the steel-pouring plug usually does not extend beyond the upper edge of the nest. Pocket blocks is made of fireclay.
Pocket blocks is widely used in the metallurgical, foundry and other metallurgical industries. It can protect and fix the glass and extend the life of the glass.
SEEIF has extensive experience in the production of various ceramic refractory elements used in the steel industry. You can get expert advice regarding the use of SEEIF products and their technical parameters from Kitmas specialists.
|

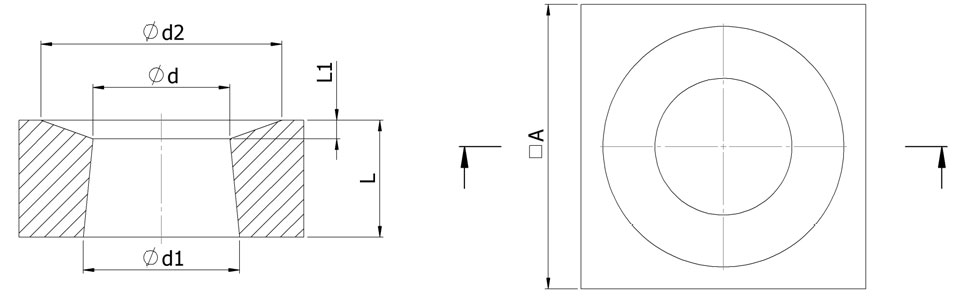

Тype |
d (mm) |
d1 (mm) |
d2 (mm) |
A (mm) |
L (mm) |
L1 (mm) |
|
L0 |
125 |
143 |
220 |
250 |
107 |
17 |
|
L1 |
149 |
169 |
260 |
320 |
123 |
23 |
|
L2 |
143 |
169 |
260 |
320 |
165 |
35 |
|
L3 |
163 |
194 |
300 |
360 |
190 |
35 |
|
L6 |
143 |
123 |
260 |
320 |
123 |
23 |
